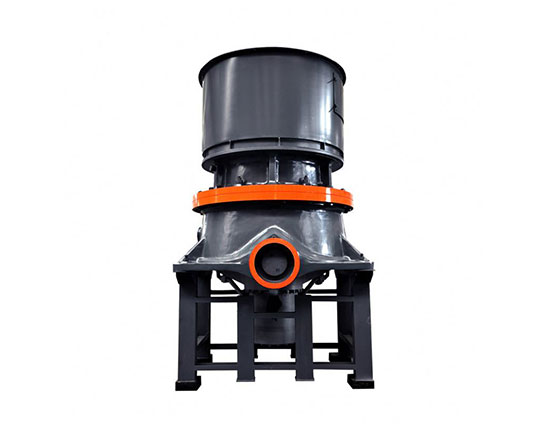

HH和HS單缸液壓圓錐破碎機

產品簡介：

HH和HS 系列單缸液壓圓錐破碎機集機械，液壓，電氣，自動化，智能控制等技術于一體。可以廣泛地應用于中碎，細碎以及超細碎等破碎作業。可廣泛的應用于金屬與非金屬礦，水泥廠，建筑，砂石，冶金等行業，適用于鐵礦石，有色金屬礦石，花崗巖，石灰?guī)r，石英石，砂巖，鵝卵石等。

應用領域：可廣泛的應用于金屬與非金屬礦，水泥廠，建筑，砂石，冶金等行業。

適用物料：適用于鐵礦石，有色金屬礦石，花崗巖，石灰?guī)r，石英石，砂巖，鵝卵石等。

設備咨詢索取報價

工作原理

水平軸、偏心套、定錐、動錐、軸承等。配件采用鑄造或鍛造工藝，由高錳鋼、高鉻、高錳復合等耐磨材料制造而成。。

技術參數

型號Model	腔型 Cavity	粒度 Feeding size (mm)	排料口(CSS)對應產量(t/h) The capacity of Corresponding Discharge opening size (t/h)
型號Model	腔型 Cavity	粒度 Feeding size (mm)	5mm	6mm	7mm	11mm	12mm	13mm	15mm	17mm	18mm	19mm	22mm	24mm
CH100 90KW	C粗 Coarse	120						65-70	70-85	75-100	75-105	80-110	85-120	90-100
	M中 Medium	105				55-80	60-85		65-90	65-95	70-100	75-100
	MF中細 Medium fine	85			45-50	50-75		55-80	60-85		65-90	65-80
	EF特細 Extra fine	32	35-40	40-55	40-60	45-70	55-75		60-75	65

型號 Model	腔型 Cavity	給料粒度 Feeding size (mm)	排料口(CSS)對應產量(t/h) The capacity of Corresponding Discharge opening size (t/h)
型號 Model	腔型 Cavity	給料粒度 Feeding size (mm)	20mm	25mm	30mm	35mm	40mm	45mm
CS100 90Kw	M標中 Medium	170	85-90	105-145	125-175	145-200	165-215

型號 Model	腔型 Cavity	給料粒度 (mm) Feeding size (mm)	排料口(CSS)對應產量(t/h) The capacity of Corresponding Discharge opening size (t/h)
型號 Model	腔型 Cavity	給料粒度 (mm) Feeding size (mm)	6mm	8mm	10mm	13mm	16mm	19mm	22mm	25mm	32mm	38mm
	EC特粗 Extra Coarse	185				69-108	75-150	80-161	86-171	91-182	104-208	115-208
	C粗 Coarse	145				66-131	71-142	76-152	81-162	86-173	98-197	109-150
CH430 132KW	MC中粗 Medium Coarse	115			57	62-140	67-151	72-162	77-173	82-184	93-145
	M中 Medium	90			64-84	69-131	75-142	80-152	86-162	91-154	104
	MF中細 Medium fine	75		61	65-106	70-115	76-124	81-126	87-114	92
	F特 Fine	50	48-78	51-83	54-88	59-96	63-103	68-105	72-95	77
	EF特細 Extra fine	35	70-90 其中80%小于5mm-5.6mm 70-90 of them are smaller than 5mm to 5.6mm

型號 Model	腔型 Cavity	給料粒度 (mm) Feeding size (mm)	排料口(CSS)對應產量(t/h) The capacity of Corresponding Discharge opening size (t/h)
型號 Model	腔型 Cavity	給料粒度 (mm) Feeding size (mm)	8mm	10mm	13mm	16mm	19mm	22mm	25mm	32mm	38mm	44mm
CH440 220KW	EC特粗 Extra Coarse	215				114-200	122-276	131-294	139-313	159-357	175-395	192-384
	C粗 Coarse	175			101	109-218	117-292	125-312	133-332	151-378	167-335	183-229
	MC中粗 Medium Coarse	140			97-122	105-262	113-282	120-301	128-320	146-328	161-242
	M中 Medium	110			117-187	126-278	136-298	145-318	154-339	175-281	194
	MF中細 Medium fine	85		114	124-227	134-245	144-263	153-281	163-299	186-248
	F特 Fine	70	90-135	96-176	104-191	112-206	120-221	129-236	137-251	156-208
	EF特細 Extra fine	38	100-120 其中80%小于6mm-7.5mm 100-120 of them are smaller than 6mm to 7.5mm

型號 Model	腔型 Cavity	給料粒度 (mm) Feeding size (mm)	排料口(CSS)對應產量(t/h) The capacity of Corresponding Discharge opening size (t/h)
型號 Model	腔型 Cavity	給料粒度 (mm) Feeding size (mm)	13mm	16mm	19mm	22mm	25mm	32mm	38mm	44mm	51mm
Ch660 315KW	EC特粗 Extra Coarse	270		117	190-338	203-436	216-464	246-547	272-605	298-662	328-511
	CX特粗 Super Coarse	235		174-194	187-374	200-488	212-519	242-592	268-654	293-521	323-359
	C粗 Coarse	215		171-190	184-367	196-480	209-510	238-582	263-643	288-512	317-353
	MC中粗 Medium Coarse	175		162-253	174-426	186-455	198-484	226-552	249-499	273-364
	M中 Medium	135		197-295	211-440	226-470	240-500	274-502	302-403
	MF中細 Medium fine	115	192	207-369	222-396	237-423	252-450	287-451	318-363
	F特 Fine	90	195-304	210-328	225-352	241-376	256-400	292-401	323
	EF特細 Extra fine	65	211-293	227-316	244-298	261-290

型號 Model	腔型 Cavity	給料粒度 (mm) Feeding size (mm)	排料口(CSS)對應產量(t/h) The capacity of Corresponding Discharge opening size (t/h)
型號 Model	腔型 Cavity	給料粒度 (mm) Feeding size (mm)	19mm	22mm	25mm	29mm	32mm	35mm	38mm	41mm	44mm	48mm	51mm
CS430 132KW	EC特粗 Extra Coarse	360			126	138-173	147-230	156-293	165-310	174-327	183-344	196-306
	C粗 Coarse	300		108	116-145	127-199	135-254	144-270	152-285	161-301	196-264	108
	MC中粗 Medium Coarse	235	91	98-123	106-166	116-218	124-232	131-246	139-261	147-275	154-241	165

型號 Model	腔型 Cavity	給料粒度 (mm) Feeding size (mm)	排料口(CSS)對應產量(t/h) The capacity of Corresponding Discharge opening size (t/h)
型號 Model	腔型 Cavity	給料粒度 (mm) Feeding size (mm)	25mm	29mm	32mm	35mm	38mm	41mm	44mm	48mm	51mm	54mm
	EC特粗 Extra Coarse	450				267	282-353	298-446	313-563	334-601	390-524	365-456
CS440 220KW	C粗 Coarse	400		225	239-299	254-381	269-484	284-511	298-448		333
CS440 220KW	MC中粗 Medium Coarse	300	195	214-267	228-342	242-435	256-461	270-486	284-426	303-378	317

型號 Model	腔型 Cavity	給料粒度 (mm) Feeding size (mm)	排料口(CSS)對應產量(t/h) The capacity of Corresponding Discharge opening size (t/h)
型號 Model	腔型 Cavity	給料粒度 (mm) Feeding size (mm)	38mm	41mm	44mm	48mm	51mm	54mm	60mm	64mm	70mm	76mm	83mm
CS660 315KW	EC特粗 SuperCoarse	560		349	368-460	392-588	410-718	428-856	465-529	489-978	525-1050	562-983	604
CS660 315KW	C粗 Coarse	500	318	336-420	353-618	376-753	394-788	411-823	446-892	469-822	504-631
